Building on over a decade of experience with its proFRAME modular video grabber and playback system, used in automated testing of automotive cameras all over the world, Solectrix is now offering the proFRAME Base Board 3.1 PXIe for the PXI Express standard. It offers support for most automotive, industrial and medical cameras, displays and ECUs.

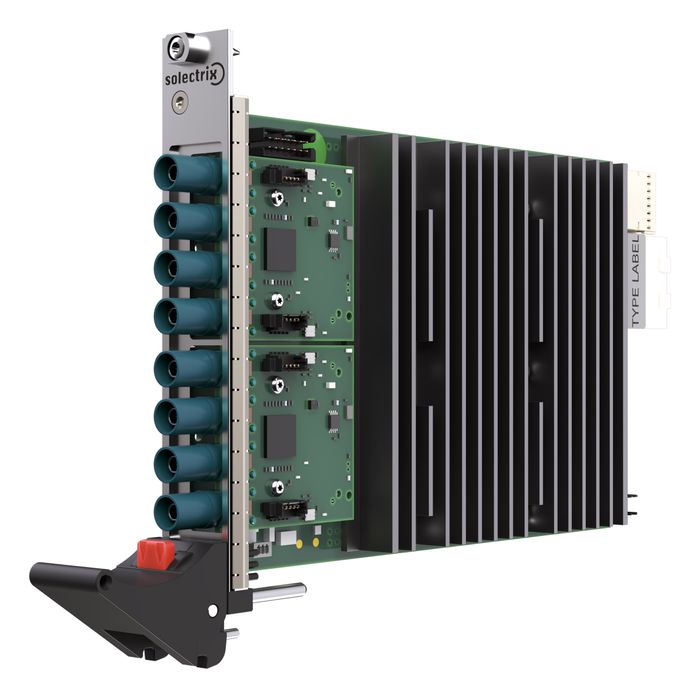

The new proFRAME Base Board 3.1 PXIe is a robust 3U module using the PXI Express Gen 3 x8 bus, with support for integration into National Instruments’ LabVIEW platform for quick adoption into existing systems. It brings the extensive range of easily swappable proFRAME interface adapters to PXIe-based measuring and automation systems. Typical applications include production and machine supervision as well as industrial testing applications in the aerospace, automotive and railway fields.

Just like earlier PCIe and CompactPCI Serial base boards, each PXIe module offers two slots for proFRAME interface adapters for up to eight video streams. Supported transmission standards include GMSL, FPD-Link, ASA Motion Link, A-PHY, HDMI, GVIF3 and CSI-2. proFRAME is a futureproof system that keeps up with technical development as new adapters are frequently added. Find out more from the Solectrix team at the expo.

Booth 1321
