The quality of indoor air in vehicles is strongly influenced
by volatile organic compounds (VOCs) released from components,
semi-finished products and materials used in the vehicle interior.

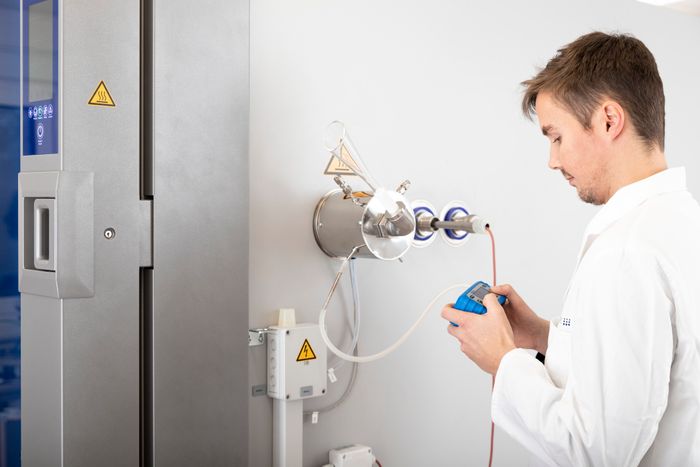

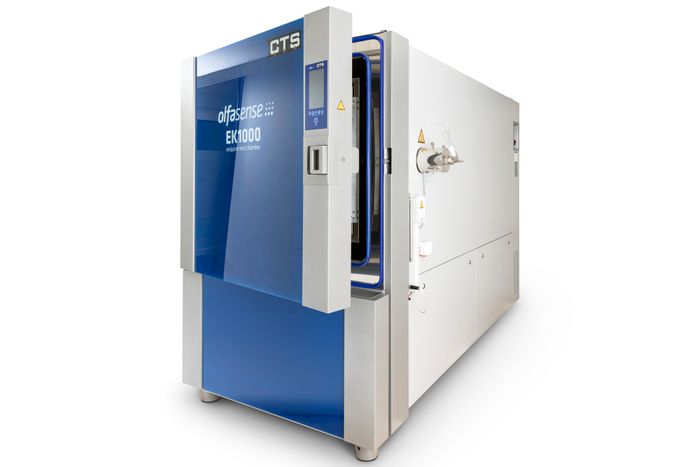

The Olfasense 1 m³ VOC emission test chamber EK1000
allows characterization of the emissions of volatile organic compounds
under precise test conditions, and is fully compliant with the
requirements of ISO 12219-4 and VDA 276.
The chamber meets also all requirements of the manufacturer
standardards GS97014-3 (BMW method), PN 780 (Porsche method), VCS 1027,
2769 (Volvo method), as well as PV 3942 (Volkswagen method).
The chamber is optionally available with a SHED function for testing
according to GS-97014-2, as well as a fogging device according to VDA
276 and VCS 1027, 2769 (Volvo method).
The chamber has been developed as a joint venture with the company CTS ,
one of the leading specialists in the field of environmental
simulation. Their innovative and technically high-quality products are
delivered to the most renowned industrial companies worldwide, with more
than 12,000 devices sold in Germany and abroad. Major client segments
include the automotive industry and its suppliers, as well as test
laboratories.
By consolidating their respective know-how and expertise, our two
companies have developed the EK1000 VOC emission test chamber, providing
clients a technically and economically optimized test system to
characterize emissions of volatile organic compounds under precise test
conditions.
Key facts
- Precise compliance with all method and measurement parameters
- Minimized adhesion
- Patented rotor with drive via non-contact magnetic coupling and emission-free ceramic bearings (speed adjustable) – see patent news
- Control panel for setting, controlling, monitoring and recording the
parameters: temperature, humidity, mass flow with export function on
USB stick

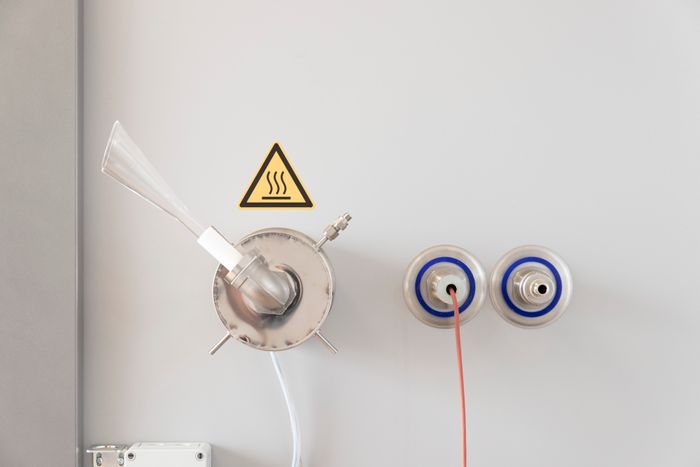

- 4 heated sampling ports, for a broad analytical performance spectrum
- Easy to maintain, plug-and-play humidity control unit
Fully compliant with
- ISO 12219-4 (Determination of VOCs from vehicle interior parts and materials )
- VDA 276 (Determination of Organic substances as emitted from automotive interior products using a 1 m³ test chamber)
- GS97014-3 BMW Method (Determination of VOCs from components, semifinished products and materials)
- PN 780 Porsche Method (Interieur – Emission behavior)
- VCS 1027, 2769 Volvo Method (Determination of volatile organic
substances from interior components/systems using a 1 m³ emission
chamber)
- PV 3942 Volkswagen Method (Determining organic emissions from
components for the passenger compartment of motor vehicles. Emission
test)
