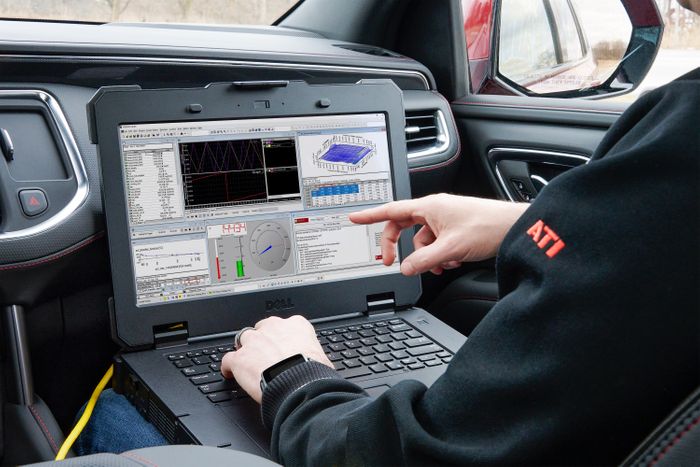

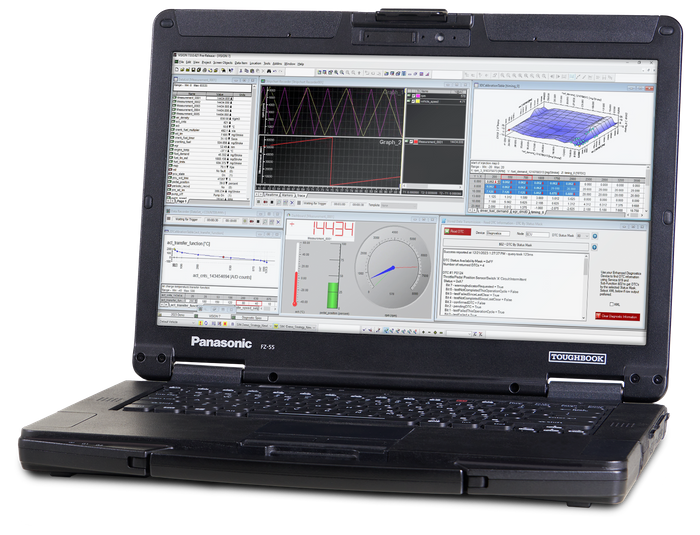

VISION Calibration and DAQ Software
)
)
)
)
A fully integrated calibration and data acquisition tool that collates signals from ECUs and external sources, VISION collects measurements and also allows the real-time calibration and modification of closed loop control systems. In addition, VISION time aligns and facilitates the analysis of information, manages calibration data changes and enables flashing of the ECU.
Features:
Features:
- VISION is an innovative, user-friendly, powerful, all-in-one software platform combining ECU flashing, calibration, data acquisition and analysis into a single solution
- VISION offers fully integrated calibration and data acquisition capabilities including signal collation from ECUs and external sources, measurement and real-time calibration of closed-loop control systems plus data time alignment
- User-created custom screen controls and GPS visualizer functionality for enhanced vehicle testing capabilities available from VISION 7.0 onwards.
- VISION 7.0 onwards features a 64-bit architecture that leverages a well-established VISION API and postprocessing features making VISION ready for large data sets and future development challenges
- VISION toolkits provide incremental capability to provide the necessary functionality based on user requirement, from dedicated Data Acquisition and VISION Data Analyzer (VDA) packages to ECU calibration and ultimately the rapid prototyping of module functionality via optional No-Hooks / OnTarget toolkits
- VISION Data Analyzer (VDA) supports ASAM MDF4 for easy recording, sharing and post-analysis of large data sets
- Additional toolkits to provide extra functionality EG Model-Based calibration and extended diagnostics capabilities
- Optional Enhanced Diagnostics Toolkit (EDT) extends VISION’s capabilities to include ISO-14229 diagnostic services.
)
