DC source / sink: Single- (I-TS-3870) & Multi- (MI-TS-3871) channel system
)
)
)
)
Typical applications
- Battery tests (charge and discharge tests of batteries)
- Battery simulation / battery emulation
- Load for fuel cells
- Test power supply for contactors, fuses and circuit breakers
- Test of DC motors (drive train)
- Testing of charging columns (comemso)
- Power supply to trains for maintenance purposes at the ICE (German high speed train) plants

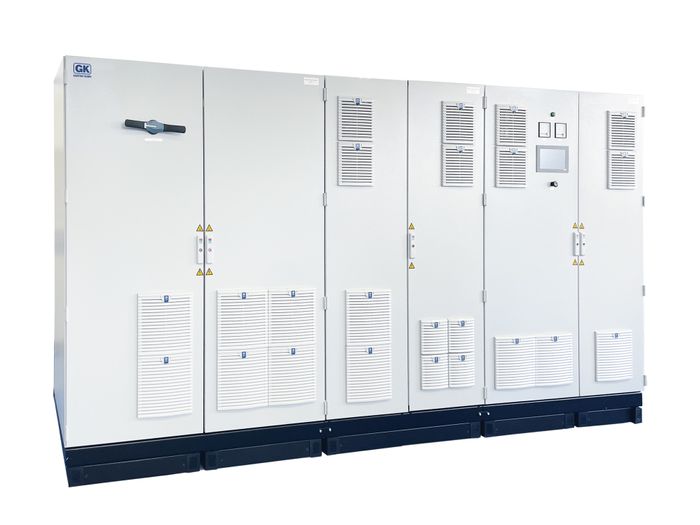

MI-TS-3871: Multi-channel system for energy-saving tests and simulations. Multi-channel system for energy-saving tests and simulations. Two or four outputs, up to 1500 V and 1200 A per output (without galvanic isolation between the DC outputs // Maximum values for voltage, current and number of output channels depending on the specifi c confi guration).
Our high-performance test system MI-TS (Multichannel Infeed test system) is a multi-channel, highly dynamic, bidirectional DC power supply with continuous and seamless transition from source to sink
mode. Thanks to its multi-channel capability and outstanding performance, the MI-TS is the ideal test system for a wide range of applications in the automotive, hydrogen and laboratory sectors. At the same time, it off ers the possibility of increasing performance thanks to parallel output channels.
