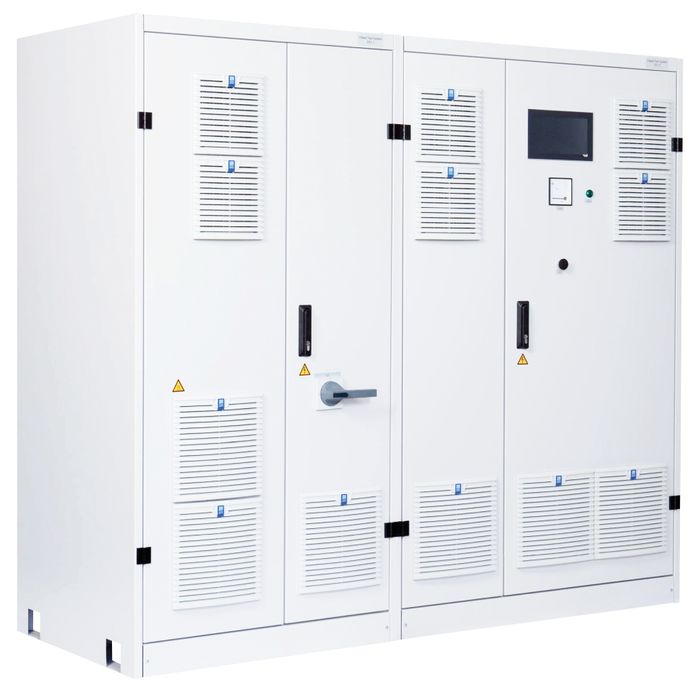

DC source / sink: Single-Channel System (I-TS-3842)
)
)
)
)
Our high-performance test system I-TS (Infeed test system) is a high dynamic, bidirectional DC power supply with continuous and seamless transition from source to sink operation. The outstanding performance is the basis for a wide range of applications in the automotive, hydrogen and laboratory sectors.
Safety equipment
- The I-TS-3842 impresses even in the standard system configuration with its extensive equipment and is therefore ready for immediate use by customers from all over the world. The following is a small excerpt:
- ≥ 1000 V / voltage rise time of 250 V / ms
- Capable of withstanding overload for 30 seconds every 10 minutes.
- Main switch (load break switch with fuses on the AC connection; lockable during exhibitions)
- Safety control for performance level d (PLd) in accordance with ISO 13849-1 / EN 60204-1
- Display with touch operation
- Analog voltmeter in cabinet door
- Terminal connections for DC voltage measurement (accuracy 0.03% with sense leads)
- Connection terminals for external “emergency stop” and “stop”
- Modbus TCP-IP interface; CAN bus (“100 Hz” with dbc fi le); VNC via Ethernet
Typical applications
- Battery tests (charge and discharge tests of batteries)
- Battery simulation / battery emulation
- Load for fuel cells
- Test power supply for contactors, fuses and circuit breakers
- Test of DC motors (drive train)
- Testing of charging columns (comemso)
