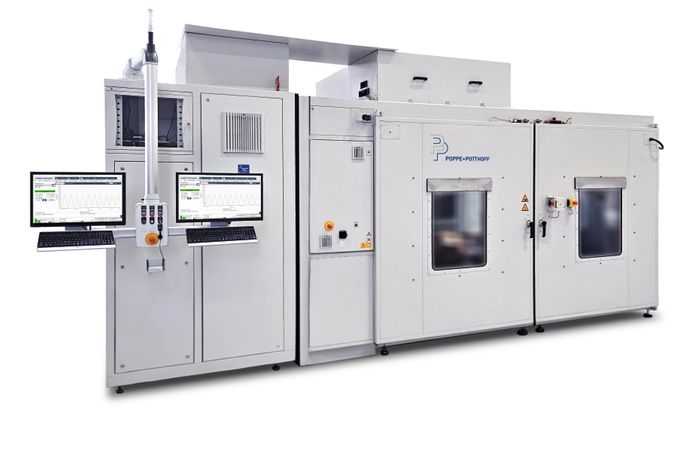

Pressure Pulsation Test for Battery Cold Plates and Heat Exchangers
)
With a
pressure cycling range from –0.3 to 10 bar, static testing up to 20 bar, fully
programmable pressure profiles (sine, trapezoid, peak), and cycling frequencies
up to 2 Hz, the system enables reliable pulsation, endurance, and lifetime
testing. The adjustable coolant flow rate of up to 80 l/min, together with the
use of 100% original coolant, ensures highly realistic simulation of the
thermal and hydraulic behavior of battery cooling plates.
The
optional temperature chamber extends the system’s capabilities by enabling
thermal shock, functional testing, and environmental conditioning across a
temperature range of +20 to +90 °C, with an internal volume of 9,600 liters.
Eight parallel test stations equipped with integrated sensors (pressure,
temperature, flow) provide high throughput and significantly reduce development
time.
This makes
the system ideal for OEMs, Tier-1 suppliers, and R&D laboratories that
require robust, repeatable, and highly realistic validation of battery cooling
plates and other components used in advanced EV thermal management systems.
