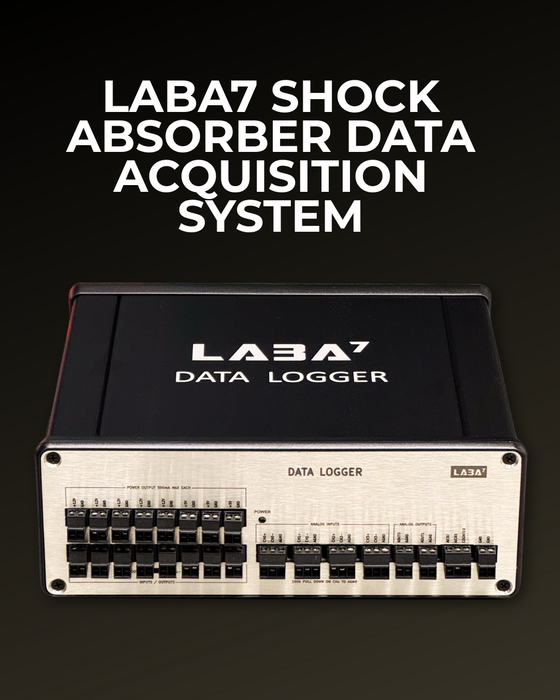

LABA7 Data Acquisition System
)
)
)
)
)
)
How does it work? With the LABA7 software, every signal is time-synchronized, providing a comprehensive view of damper behavior.
Need more channels? Add more units! Daisy-chain DAQ systems to connect an infinite number of sensors without losing time alignment.

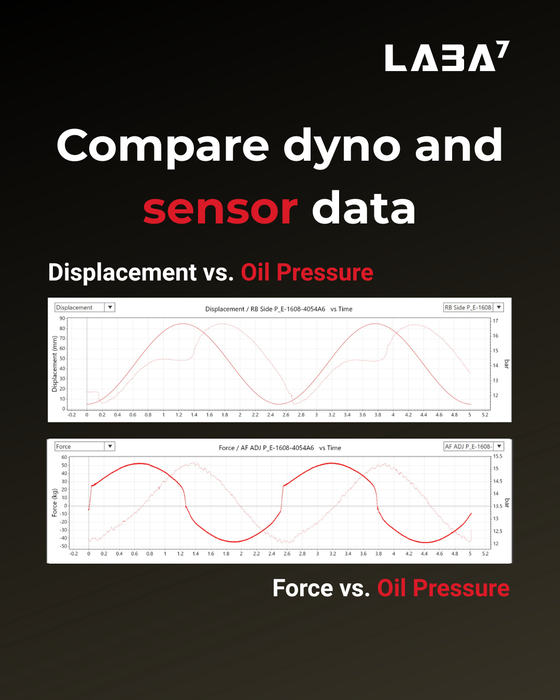

Take your damper testing beyond force-displacement curves. Connect any sensor, expand without limits, and unlock synchronized high-speed data.
- 16-bit resolution, up to 125 kHz sampling
- Ethernet connectivity for remote logging and configuration

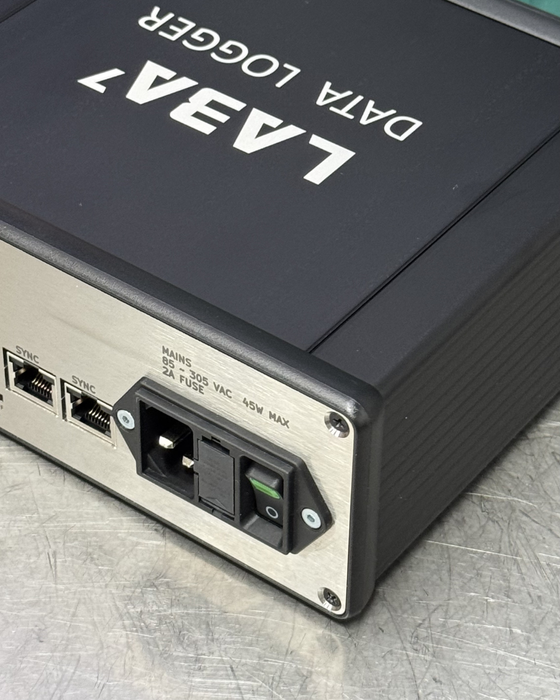

- Integrated 45 W AC/DC power supply – no external adapters required
- Regulated sensor power outputs: 5 × 12 V (500 mA each) + 3 × 5 V (500 mA each)
- Dedicated connectors for each input/output channel
- Differential input reading for noise-free, high-accuracy signals
- RS-485 synchronization for multi-system integration
- Compact, rugged design for lab and motorsport use
Analog Inputs
Channels: 8 single-ended or 4 differential
Resolution: 16 bits
Input Ranges: ±10 V, ±5 V, ±2 V, ±1 V
Max Throughput: 125 kS/s (aggregate)
Input Impedance: >1 MΩ
Digital I/O
Channels: 8 bidirectional
Logic Levels: 3.3 V / 5 V compatible
Individually configurable
Triggering & Synchronization
External Trigger Input: Differential (RS485)
External Clock I/O: TTL compatible
Sensor Power Outputs
5 × 12 V regulated outputs (500 mA each)
3 × 5 V regulated outputs (500 mA each)
500 mA PTC fuse per channel
General
Dimensions: 191 × 161 × 66 mm
Weight: ~500 g
Operating Temp: 0 °C to +30 °C
Analog Outputs
Channels: 2
Resolution: 16 bits
Output Range: 0-5 V
Update Rate: 500 kS/s per channel
Counter
Channels: 1, 32-bit resolution
Input Frequency: up to 10 MHz (TTL-level)
Communication
Ethernet 10/100BASE-T, TCP/IP & UDP
Fully compatible with LABA7 software
Power Supply
Integrated AC/DC: 45 W, 12 V output
Input Voltage: 85–264 VAC, 47–63 Hz
DC Option: 8–16 V external supply
