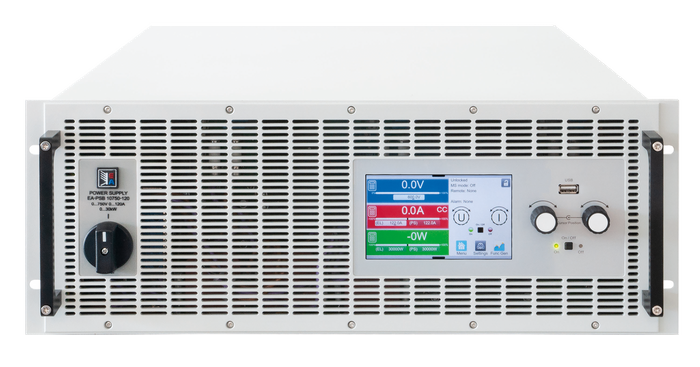

PSB 10000 4U series programmable bidirectional DC power supplies are available with 30 kW in 4U.

• AC input range 342-528 V, for operation on 380 V, 400 V and 480 V networks
• Bidirectional - load and power supply in one
• Energy recovery with high efficiency
• Rated Power: 30 kW per unit, expandable up to 1080 kW
• Rated Voltage: 60 V to 2000 V
• Rated Current: 40 A to 1000 A per unit
• Protection functions (OVP, OCP, OPP, OTP)
• Large TFT touch panel with display for all values, status indications and messages
• Remote sensing input with automatic detection
• Galvanically isolated analog interface
• Integrated function generator
• Photovoltaic source simulation,
• battery test, MPP tracking simulation
• PV simulation according to DIN EN 50530
• Optional digital interface modules
• USB interface as standard
• SCPI command language, ModBus RTU
• LabView supported, control software for Windows
