Dunalog XL
)
Product Description

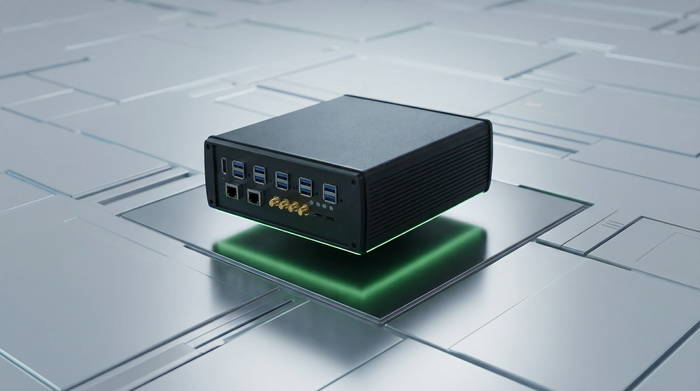

Dunalog XL is a high-capacity connected data logger designed to capture, store, and transmit vehicle data in real time. It is suitable for the most demanding applications, from test benches to on-road validation, and offers complete control over data acquisition.
Technical Specifications
Technical Specifications
- Logging up to 16 CAN FD Channels, 10 LIN Channels and 8 ports Ethernet Base-T1.
- Robust and reliable collection of real time data.
- Low Power Consumption in Sleep mode With Possible WakeOnCAN in 8 Channels or Wakeup signal (ex: Ignition Signal)
- 5G Module on internal M.2 Connector.
- Internal GNSS Module (Up to 10Hz)
- Internal Wifi(2.4GHz & 5GHz)/BT/BLE Module
- Internal 9 Axis IMU (Accelerometer, Gyroscope, Magnetometer)
- 11x Different Types of I/O
- 10x USB 3 Ports
- 2x 2.5GB Ethernet Port (RJ45)
- 2x 1GBS base T ethernet.
- 1x Audio Jack 3.5mm (Speaker and Mic)
- SSD pcie Storage up to 16TB
- LEDs Status
- General Purpose Push Button
- Easy configuration without complex scripts
- Multiple Data transfer protocols (MQTT, SFTP, Thingworx…)
- RTC for Time keeping power by CR2032 coincell.
