Dunalog
)
Product Description

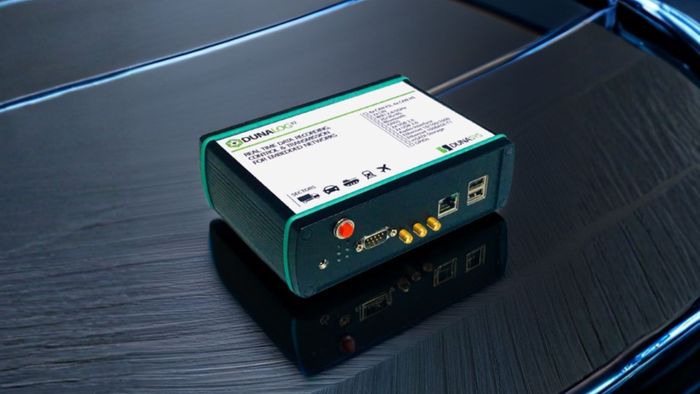

Dunalog is a connected data logger designed to capture and record vehicle data in all testing scenarios. Proven over millions of kilometers and in countless test campaigns, it offers a robust and high-performance solution suitable for most data acquisition needs.
Technical Specifications
- Logging up to 13 CAN (11 FD, 1 FD/LS, 1HS) Channels, 2 LIN Channels and 4 ports Ethernet Base-T1.
- Robust and reliable collection of real time data.
- Low Power Consumption in Sleep mode With Possible WakeOnCAN in 4 Channels or Wakeup signal (ex: Ignition Signal)
- LTE CAT 4 Module on internal Mini PCIe Connecter.
- Internal GNSS Module (Up to 10Hz)
- Internal Wifi(2.4GHz & 5GHz)/BT/BLE Module
- Internal 9 Axis IMU (Accelerometer, Gyroscope, Magnetometer)
- 11x Different Types of I/O
- 4x USB Ports ( 2x USB2.0, 2x USB3.0)
- 1x 1GB Ethernet Port (RJ45)
- 1x Audio Jack 3.5mm (Speaker and Mic)
- μSD Storage up to 256Go
- Internal mSATA Port for SSD Mounting.
- 6 LEDs Status
- General Purpose Push Button
- Easy configuration without complex scripts
- Multiple Data transfer protocols (MQTT, SFTP, Thingworx…)
- RTC for Time keeping power by CR2032 coincell.
