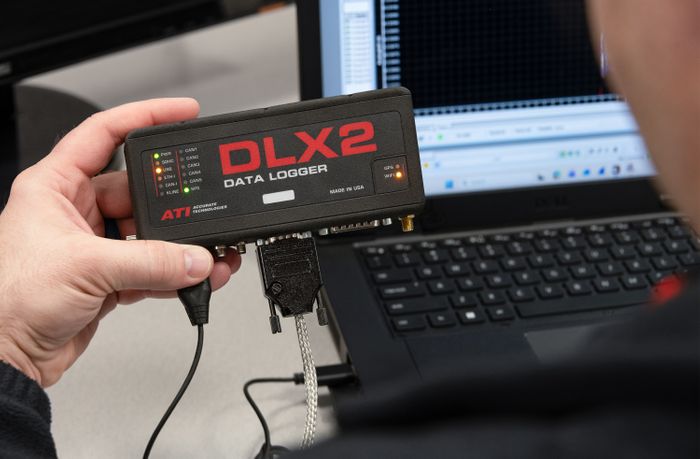

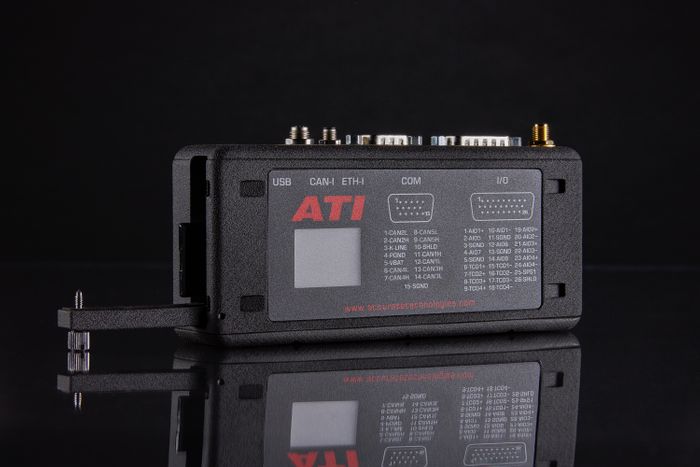

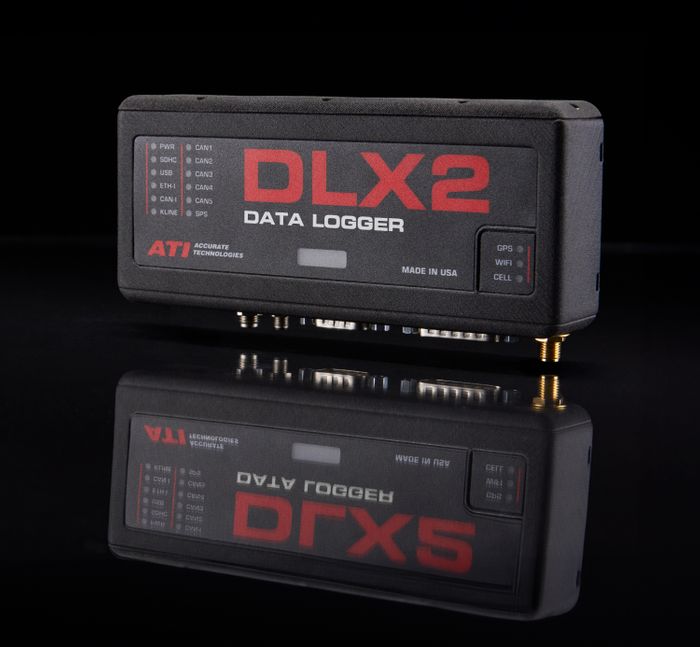

DLX2 Data Logger
)
)
)
)
)
)
Versatile Connectivity
- Up to 5 CAN-FD channels (backward compatible with CAN 2.0B)
- RS485, LIN, ISO 9141 K-Line
- Wireless: Wi-Fi, Bluetooth v4.2, GNSS (GPS, GLONASS, Galileo, BeiDou)
- USB 2.0 High Speed (sealed Type-C)
Expandable & Compatible
- Dual M5 expansion connectors for single-cable connectivity to ATI modules
- Supports SD card logging (up to 2TB) in ASAM MDF4 format
- Native support for ATI’s VISION Calibration and Data Acquisition Software
Compact & Accurate
- Housed in a compact, IP65-rated polyamide enclosure
- Offers 16-bit resolution samples
- Dedicated channels for bipolar differential analog, unipolar single-ended analog, and K-type thermocouples
- Data output rates up to 2 kHz per channel
- Durable, pocket-sized, lab-to-field ready
)
