Exhibitor Products

Conditioning Systems

autotherm Nenninger GmbH & Co. KG Hall: 1 Stand: 1516
  • Conditioning Systems
  • Conditioning Systems
  • Conditioning Systems
Conditioning Systems Conditioning Systems Conditioning Systems

Working principle

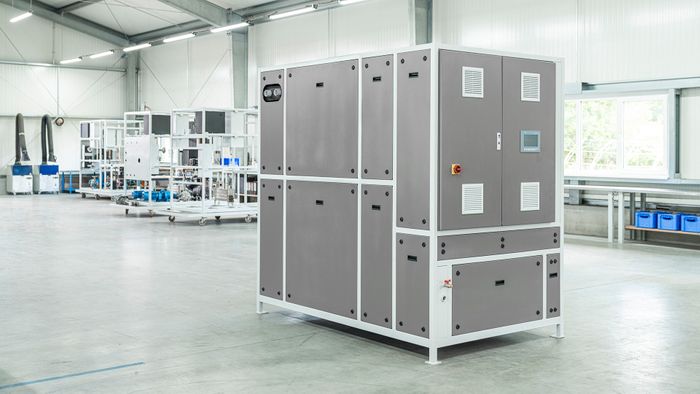

autotherm conditioning systems supply closed, semi-open or open test specimen circuits with the specified temperature and flow values without exceeding the maximum pressure.

Heating is mainly electric, while cooling is provided by an integrated compression refrigeration machine or heat exchangers.

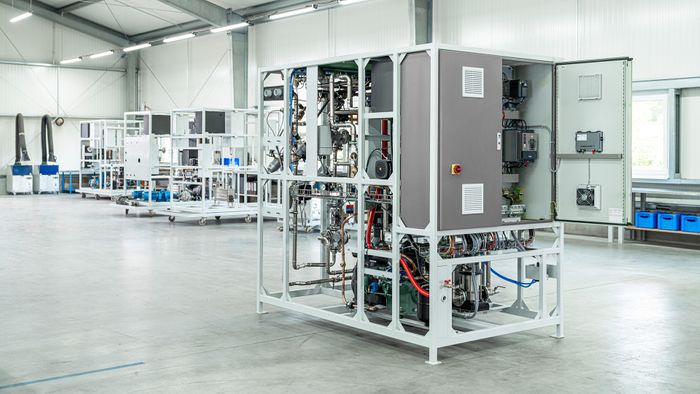

All system components required for operation are integrated into a single assembly and coordinated with each other to meet the highest requirements for control accuracy and dynamics.



Areas of application

  • Automotive industry
  • Test cells and benches


Examples of further upgrade options

Depending on the heat transfer medium, the following areas of application and performance can be achieved:

  • Temperature: -45°C to +150°C / +30°C to 300°C
  • Flow rate: 0.05 to 200 l/min
  • Pressure limitation: 0.3 to 16 bar
  • Number of temperature control circuits: 1 to 24
  • Cooling capacity: 0.5 to 90 kW
  • Heating capacity: 3 to 144 kW



Standard Features

  • Pumps, valve technology, heat exchangers and piping optimised for the conditioning task
  • Temperature, pressure and flow sensors
  • IP54 control system in Rittal control cabinet
  • S7 control system with colour touch screen
  • Steel frame construction with aluminium cladding, painted in RAL colour according to customer requirements


Examples of further upgrade options

  • Automatic filling and emptying systems
  • Up to 24 flow control circuits with shared temperature control or independent temperature control for each circuit
  • Adaptation of device dimensions and positioning of device connections to the installation conditions
  • Interfaces for connection to higher-level control systems, including Profinet, Ethercad and Canbus
  • Energy saving systems
  • Leak testing and leak detection
  • Remote maintenance modules
  • Sound insulation
  • Rollers
